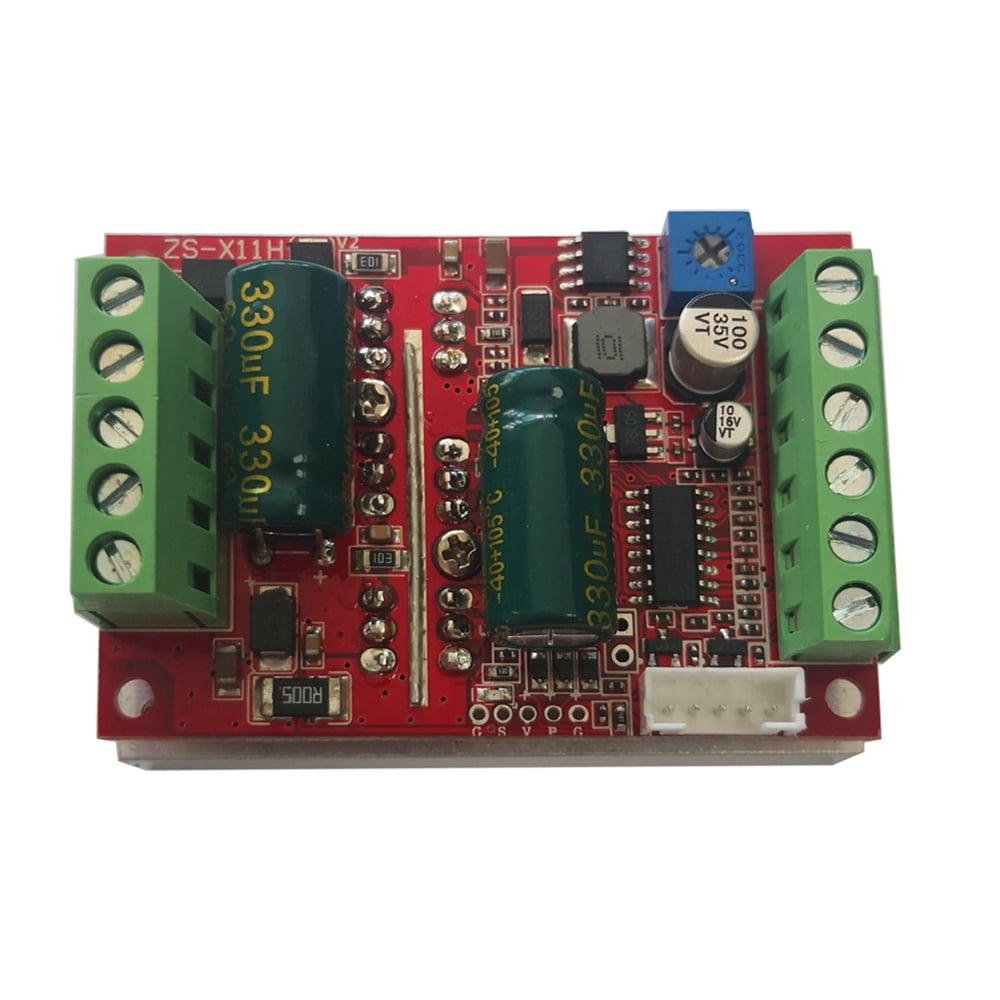

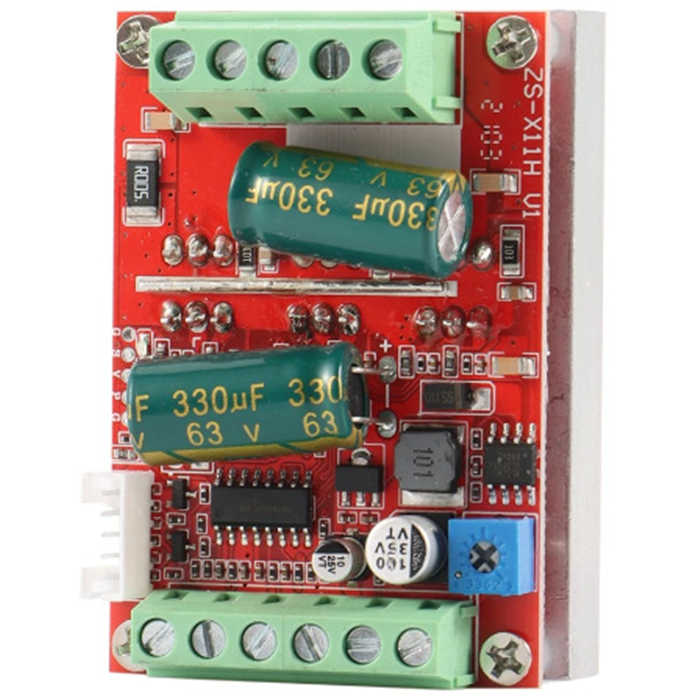

DC 6-60V 400W BLDC Three Phase DC Brushless Motor Controller PWM Hall Motor Control Driver Board 12V 24V 48V - 13

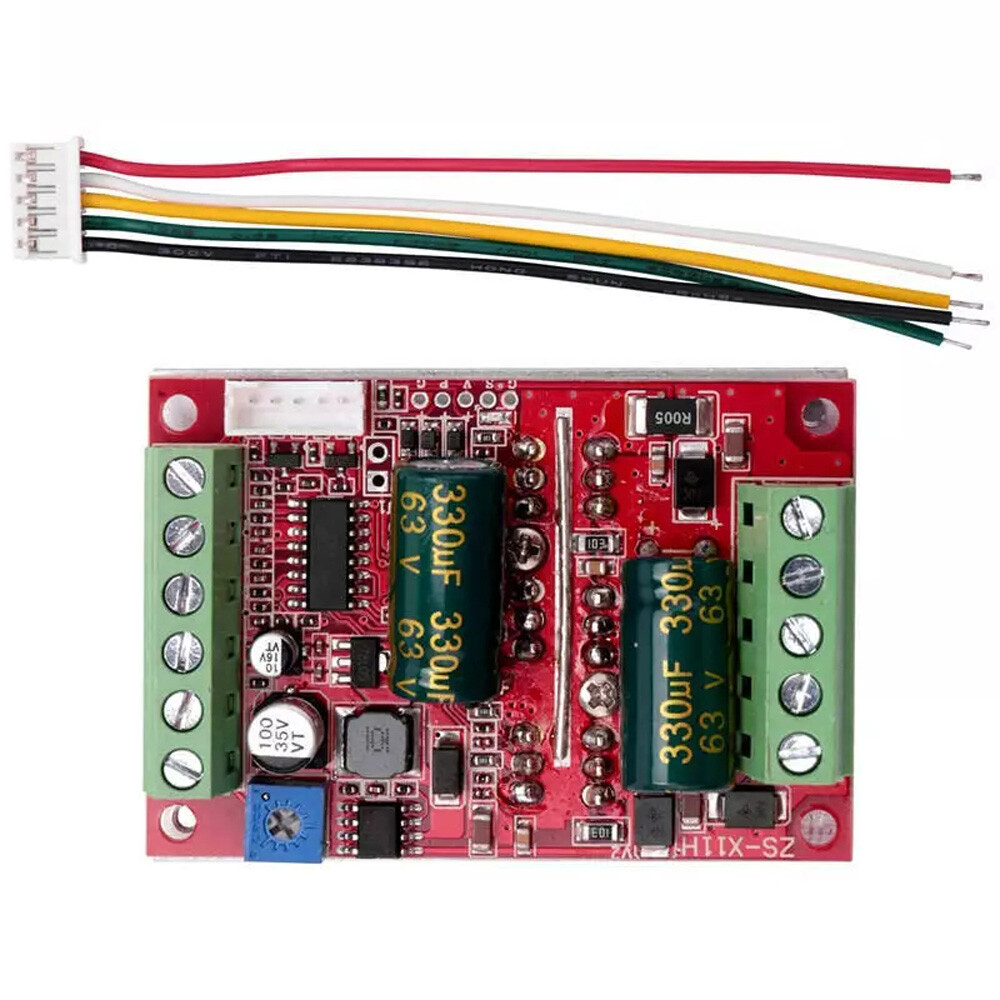

MA MB MC phase line output to motor 5V GND The motherboard comes with a 5V power supply VCC GND main power supply SC speed pulse signal output DIR direction control Forward and reverse control interface STOP stop Stop control interface BRAKE brake control brake control interface Speed control and speed control signal input Ha Hb Hc +5V GND Hall signal Power supply input interface, generally motors with Hall have corresponding 5 wires There are 5 Hall wires on the brushless motor, two of which are Hall power wires. The three Hall signal wires must be distinguished, especially the power wires must not be mistaken. The order on the board must match the order of the three-phase wires on the motor driver board to work properly. Note: If you don't know the definition of Hall wire, please use low current and low voltage to test the first wiring tester, change the sequence of hall wire until normal operation, and then turn on high current and high voltage after confirming, otherwise there is Risk of damage to the driver board. At the same time, pay attention to the insulation of the wiring head when wiring. Since the power and current of the module are very large, please do not short-circuit when the module is not working normally. Package Included: 1*DC 6-60V 400W Three Phases Hall Brushless Motor Controller Board Features:MA MB MC phase line output is connected to the motor, 5V GND main board comes with 5V power supply, VCC GND main power supply, SC speed pulse signal output, DIR direction control forward and reverse control interface, STOP stop stop control interface, BRAKE brake control, brake control interface , speed control speed control signal input, Ha Hb Hc +5V GND Hall signal power supply input interface, generally motors with Hall have corresponding 5 wires. [Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not Amazon support), we will give you a perfect solution.
